Answer all questions.  One hour and 20 minutes.

Return both questions and answers.

Name: _________________________________________      Grade: __________________

(1)    [10 points]  Write a Cold Fusion program t2aq1.cfm to list all distinct values of a user-specified column for the table s00t2q1 of the DSN temp.  The table s00t2q1 has four columns, EmployeeID being the primary key.  An instance looks like:


EmployeeID	FullName	EMailAddress	Country
1	Kiu Shen	shen@lattes.uhcl.edu	China
2	Grace Shen	sheng@lattes.uhcl.edu	China
3	Bill Ho	ho@lattes.uhcl.edu	China
4	Lu Zhan	luz@lattes.uhcl.edu	India
5	Rama Modi	modi@lattes.uhcl.edu	India
6	Jiang Xu	xu@lattes.uhcl.edu	China
7	Matt Maloney	maloney@lattes.uhcl.edu	USA

The column name should be supplied by using the parameter ColumnName in the query string of the URL.  If the input URL is:

http:/yourserver/t2aq1.cfm?ColumnName=Country

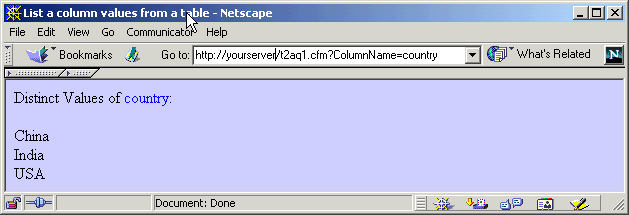

the output should be:

If the input URL is:

http:/yourserver/t2aq1.cfm?ColumnName=FullName

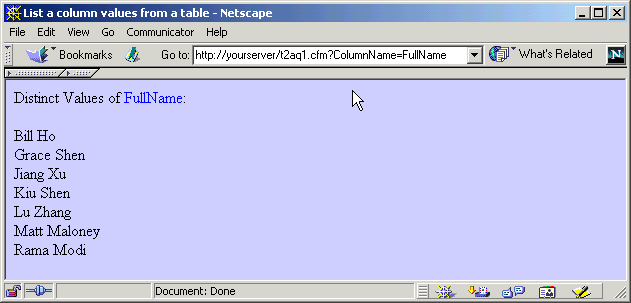

the output should be:

If an user input an incorrect column name, a proper message is given.  For the url:

http:/yourserver/t2aq1.cfm?ColumnName=xyz

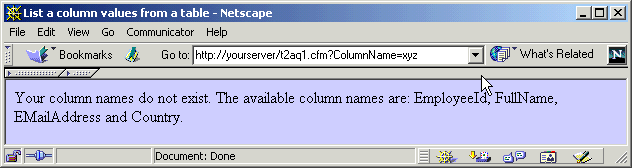

the output should be:

(2)  [5 points] Write a Javascript bookmarklet (a Javascript pseudo-url) to show the number of images in the current url page in an alert window.  For example:

(3)  [10 points]  Consider the following html file t2aq3.html:

<form action="t2aq3.asp" method="post">
Enter XML string:
<br>
<textarea name="xml" cols="60" rows="14"></textarea>
<br>
<input type="submit">
</form>

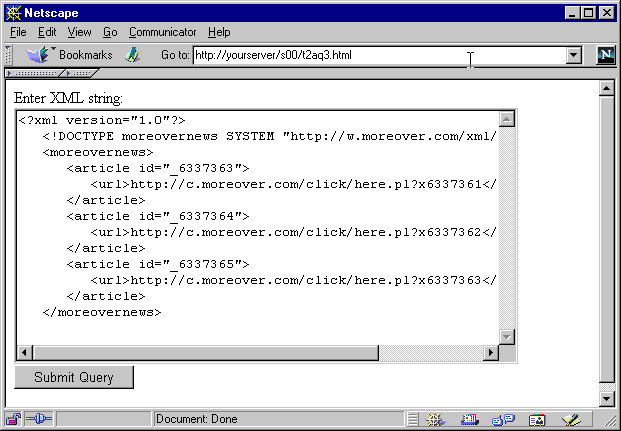

which creates the following form to allow the user to input an XML document in a string:

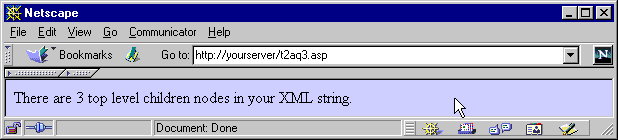

The form is submitted to the Active Server Pages program t2aq3.asp which will show the number of top level children nodes:

The number of top level children nodes is 3 in this case because there are three article tags.

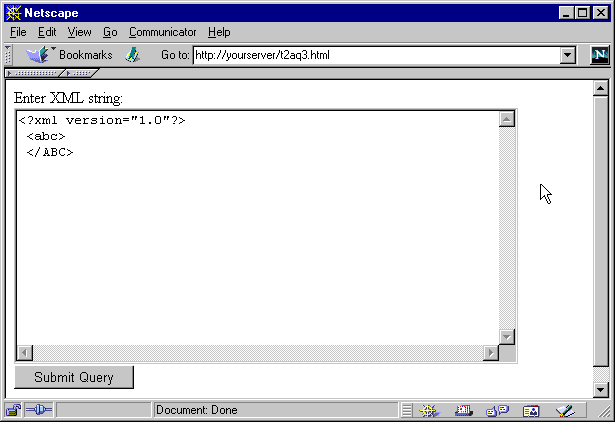

If the input is incorrect:

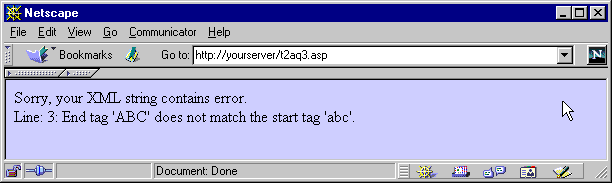

a proper message with the error line number and reason are given:

Write the program t2aq3.asp.  You may use the methods 'line' and 'reason' of the interface IXMLDOMParseError.

(4)  [5 points]  Consider the following XML document.

<?xml version="1.0" ?>
<!DOCTYPE class PUBLIC "http://somewhere/class.dtd">

<class>
   <title>CSCI 4230 software Tools</title>
   <instructor>K. Yue</instructor>
   <student status="graduate">Mary Simon</student>
   <student>Paul Simon</student>
   <student status="undergraduate">
      <firstName>Robert</firstName>
      <lastName>Wagner</lastName>
   </student>
</class>

Give a minimal DTD for the document.
