Database System Concepts and Architecture: an introduction

by K. Yue

1. Resources

• Read Chapter 2 of Elmasri.

2. DB Concepts and Architecture

Data models: Collection of concepts that describe the structure of a database

• Data abstraction: provide the right level of vocabularies and operations for a given task:
  • Information hiding: hide lower level details.
  • Higher level: potentially more concise.
  • Lower level: potentially more flexible and better performance.
• There are many data models for database implementation, e.g.:
  • relational data model
  • object-oriented data model
  • tree model (e.g. hierarchical database, XML database)
  • network model
  • logical model
  • spreadsheet table model
• Different data model may be used for analysis and design. e.g.
  • Entity Relationship model (or EER: Extended Entity Relationship Model)
  • Object-oriented model
• Selecting the right models:
  • For analysis and design
  • For implementation

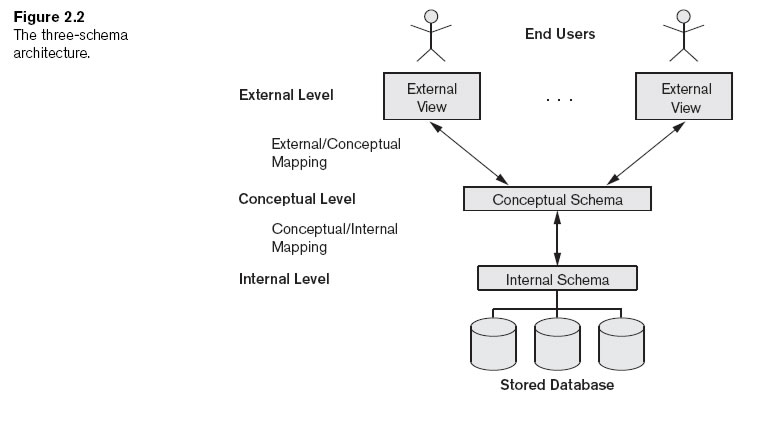

Three-Schema DB Architecture:

Consult Figure 2.2 of Elmasri.

• Use the layer pattern to manage complexity.
• Three levels:
  • Internal/Physical level: Describes physical storage structure of the database
  • Conceptual/Logical level: Describes logical structure of the whole database
  • External or view level: Describes part of the database for a particular user group; provide the right level of abstraction and security control.

• Provide data independence.
• The conceptual level is the key.
• Note the roles of DB applications and stored procedures.

Be sure to familiarize yourself with the terminology of DBMS appearing in Chapter 2. E.g. DDL, DML, query compiler, catalog, concurrency control system, buffer management system, data dictionary, etc.
