Introduction to MongoDB

by K. Yue

1. Introduction

• MongoDB is a NoSQL document model distributed database owned by MongoDB (NASDAQ: MDB).
• Documents are stored in JSON format (BSON to be exact).
• Three versions:
  1. Community server: open source version
  2. Enterprise server: commercial version
  3. Atlas: cloud version

1.1 Installation

For this class, install the followings.

1. MongoDB community server: ensure that it includes Mongo Compass, a MongoDB client, https://www.mongodb.com/try/download/community
2. Mongo Shell:
   1. mongosh.exe: a Javascript shell for interacting with MongoDB, https://www.mongodb.com/try/download/shell.
   2. Do not use mongo.exe, the deprecated former shell.
3. Mongo Compass includes a Mongosh.
4. MongoDB tools: command line utilities including import and export, https://www.mongodb.com/try/download/database-tools.
   1. After unzipping, you may put mongosh and these utilities in the same location of the other mongoDB programs, e.g., C:\Program Files\MongoDB\Server\5.0\bin.
   2. You may add the directory “C:\Program Files\MongoDB\Server\5.0\bin”, or similar, to the system PATH variable so these tools can be used anywhere.
5. To be able to use MongoDB through Python, you will to install a driver: "pip install pymongo" in cmd.

1.2 Server-Client DBMS architecture

• Like many DBMS, MongoDB uses a client server model.
• Server:
  • In case the MongoDB server has not been started, run "mongod" in a command terminal.
  • To check whether mongod is running, execute 'tasklist /FI "IMAGENAME eq mongod.exe"' in Command CLI.
  • It listens to a port to accept and interpret commands and return results.
  • mongod's default port: 27017.
• Clients: send MongoDB commands and accept results. Clients used in this course:
  1. Mongo Compass
  2. mongosh
  3. Python through pymongo (if Python is used.)

1.3 Resources

• MongoDB manual: https://docs.mongodb.com/manual/

2. MongoDB Structures

• MongoDB is structured as db -> collection -> document in a way similar to db -> table -> row in MySQL.
• Thus, documents are inserted into a collection of db.
• db and collection do not need to exist before referencing them.
• In MongoDB's db, within mongosh:
  • 'use tinker' set the default db to tinker.
  • The keyword db refers to the default db.
  • If 'tinker' does not exist, it will be created.

2.1 Using mongo command CLI through mongosh

• Run 'mongosh' in command CLI in your working directory.
• Mongosh accept JavaScript commands in a mongo shell setting.
• For inserting documents, it supports two methods, insertOne and insertMany.
• See mongosh CRUD: https://docs.mongodb.com/mongodb-shell/crud/insert/.

3. Writing to Mongo

1. See CRUD operation in Mongo Guide to begin with: https://docs.mongodb.com/guides/.
   1. However, the guide may use the deprecated shell "mongo" instead of "mongosh".
   2. Since mongosh should be used, be mindful of discrepancies.

Example:

In mongosh, execute the code:

use tinker
db.test1.insertOne(
   {
      "StudentId" :1,
      "StudentName" : "Joseph Connor"
   }
)

gives the following result:

test> use tinker
switched to db tinker
tinker> db.test1.insertOne (
...     {
.....           "StudentId" :1,
.....           "StudentName" : "Joseph Connor"
.....   }
... )
{
  acknowledged: true,
  insertedId: ObjectId("61e0d5f36753d9628bb4bfa1")
}
tinker> db.test1
tinker.test1

Note:

1. In "db.test1.insertOne (", the '(' must not be put into the next line.
2. If not, mongosh thinks that the current JavaScript statement has ended and you may get:

tinker> db.test1.insertOne
[Function: insertOne] AsyncFunction {
  apiVersions: [ 1, Infinity ],
  serverVersions: [ '3.2.0', '999.999.999' ],
  returnsPromise: true,
  topologies: [ 'ReplSet', 'Sharded', 'LoadBalanced', 'Standalone' ],
  returnType: { type: 'unknown', attributes: {} },
  deprecated: false,
  platforms: [ 0, 1, 2 ],
  isDirectShellCommand: false,
  acceptsRawInput: false,
  shellCommandCompleter: undefined,
  help: [Function (anonymous)] Help
}
tinker> (
...     {
.....           "StudentId" :1,
.....           "StudentName" : "Joseph Connor"
.....   }
... )
{ StudentId: 1, StudentName: 'Joseph Connor' }

In Windows, you may start Compass through the startup manual:

In Mongo Compass (you may enter nothing in the 'Paste your connection string' connect box):

•  Note that a field _id with a system generated object id value is created. It is unique and can be served as an id.

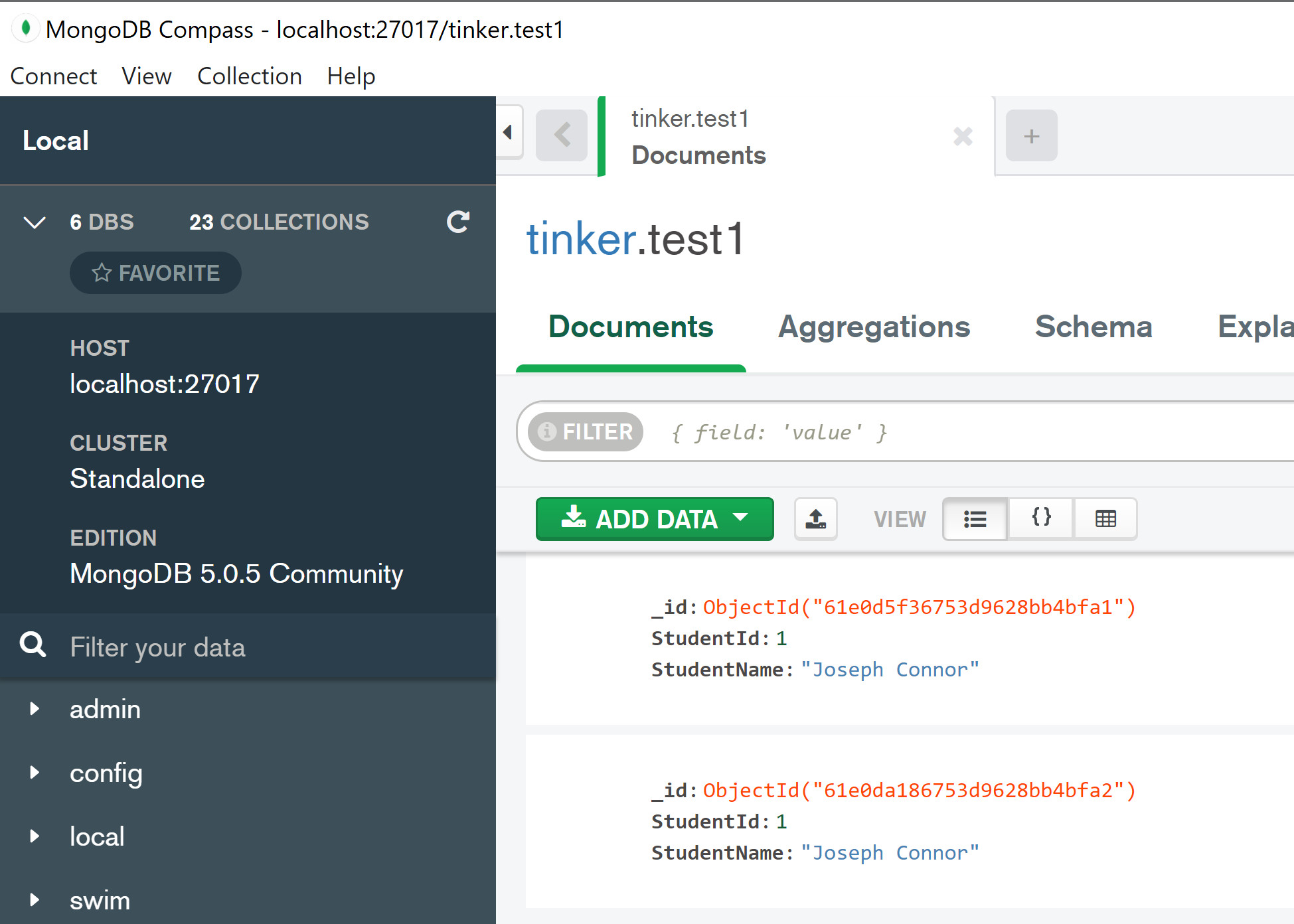

If the code is executed one more time, Mongo Compass has:

Note:

1. There are now two Joseph Connor.
2. StuId is not a 'primary key'.
3. Document model is not set-theoretic. Relation model is set-theoretic.

To insert a document 'doc' only when it does not already exist, use something like:

if (db.test1.find(doc).count() == 0) { db.test1.insertOne(doc) }

Note:

1. 'db.test1.find(doc)' finds the documents doc (one document in the example below). It returns a cursor, which is an iterator of the query result.
2. cursor has a method count() to count the result.

The following session illustrates this concept.

Code:

show dbs
db.dropDatabase()
show dbs

// remove tinker
use tinker
db.test1.find()
doc = {
      "StudentId" :1,
      "StudentName" : "Joseph Connor"
}
doc
if (db.test1.find(doc).count() == 0) { db.test1.insertOne(doc) }
db.test1.find()
if (db.test1.find(doc).count() == 0) { db.test1.insertOne(doc) }
db.test1.find()

Session:

tinker> db.test1.find()

tinker> doc = {
...             "StudentId" :1,
...             "StudentName" : "Joseph Connor"
... }
{ StudentId: 1, StudentName: 'Joseph Connor' }
tinker> doc
{ StudentId: 1, StudentName: 'Joseph Connor' }
tinker> if (db.test1.find(doc).count() == 0) { db.test1.insertOne(doc) }
{
  acknowledged: true,
  insertedId: ObjectId("61e0e49e6753d9628bb4bfa5")
}
tinker> db.test1.find()
[
  {
    _id: ObjectId("61e0e49e6753d9628bb4bfa5"),
    StudentId: 1,
    StudentName: 'Joseph Connor'
  }
]
tinker> if (db.test1.find(doc).count() == 0) { db.test1.insertOne(doc) }

tinker> db.test1.find()
[
  {
    _id: ObjectId("61e0e49e6753d9628bb4bfa5"),
    StudentId: 1,
    StudentName: 'Joseph Connor'
  }
]

3.2 Unique Index

• A unique index can be used to ensure that all documents within the collection must have unique values on the fields.
• This can be used for use cases of inserting the document only if the unique index has an unique value.
• Thus, a unique index can serve as some sort of a candidate key (if it is not missing) for identifying document in the collection.

Example:

Code:

// remove tinker
show dbs
db.dropDatabase()
show dbs
// create index
db.test1.createIndex( { "StudentId": 1 }, { unique: true } )
doc = {
      "StudentId" :1,
      "StudentName" : "Joseph Connor"
}
doc
db.test1.insertOne(doc)
db.test1.insertOne(doc)


Session:

tinker> // create index

tinker> db.test1.createIndex( { "StudentId": 1 }, { unique: true } )
StudentId_1
tinker> doc = {
...       "StudentId" :1,
...       "StudentName" : "Joseph Connor"
... }
{ StudentId: 1, StudentName: 'Joseph Connor' }
tinker> doc
{ StudentId: 1, StudentName: 'Joseph Connor' }
tinker> db.test1.insertOne(doc)
{
  acknowledged: true,
  insertedId: ObjectId("6570fb99629ad72db73f7bcf")
}
tinker> db.test1.insertOne(doc)
MongoServerError: E11000 duplicate key error collection: tinker.test1 index: StudentId_1 dup key: { StudentId: 1 }

Note:

• In 'db.test1.createIndex( { "StudentId": 1 }, { unique: true } )', '"StudentId": 1' means the attribute is a part of the index. It does not mean the value of "StudentId" should be one. 1 stands for true here.
• In { unique: true }, the index is set to have the uniqueness property.

Example:

db.test1.insertMany([
   {   "StudentId" :2,
      "GPA": 3.72
   },
   {   "StudentId" :3,
      "GPA": 1.69
   },
   {
      "BCAssetId": "78c22fc6-5dec-11ec-bf63-0242ac130002",
      "BCAssetType": "BCAssetTypeMetadata",
      "BCAssetName": "BCAssetTypeMetadata: MBSEModel",
      "ForBCAssetType": "MBSEModel",
      "Version": {
         "Version": "1.0",
         "Subversion": null,
         "StartTime": "2019-01-13T07:23:13+06:00"
      }
   }
])
db.test1.find()

Note:

1. The method insertMany() inserts many documents.
2. Documents may have no schema.
3. Within a collection, there can be many kinds of documents.
4. StudentId is a unique index, but it may not exist.
5. Thus, a Mongo's unique index is not exactly the same as a candidate key (which cannot be null) of a table in the relational model.

4. Elementary Querying

• Basically use the find method.
• find as supported in Mongosh: https://docs.mongodb.com/manual/reference/method/db.collection.find/.
• Format: db.collection.find(query, projection).

4.1 Toyu

Create the ‘toyu’ database in MongoDB.

1. Download the file: toyu-db.gz.
2. Ensure that you have download MongoDB tools: command line utilities including import and export, https://www.mongodb.com/try/download/database-tools.
3. Run the command:

mongorestore --archive="toyu-db.gz" --gzip --nsFrom='toyu.*' --nsTo='toyu.*'

Note that the design of toyu is not the typical way one would design a MongoDB. Instead, it is intended to look like the toyu MySQL database for ease of comparison.

Example:

[1] Show all students.

use toyu
db.student.find()

// Getting rid of _id:

db.student.find({},
   { "_id": 0 }
)

[2] // Show all information of students majoring in 'CINF'.

db.student.find({"major": "CINF"},
    { "_id": 0 }
)

[3] Show all student names. Return an array of student objects.

db.student.find({},
   { "fname": 1, "lname":1, "_id": 0 }
)

[4] Show all student names in this format:

student #0: Tony Hawk
student #1: Mary Hawk
student #2: David Hawk
student #3: Catherine Lim
student #4: Larry Johnson
student #5: Linda Johnson
student #6: Lillian Johnson
student #7: Ben Zico
student #8: Bill Ching
student #9: Linda King

Solution:

result = db.student.find({},
   { "fname": 1, "lname":1, "_id": 0 }
).toArray()

// May not always work as toArray() returns a promise,
// which may not be ready for use.
result.forEach((x,i) => console.log('student #' + String(i) + ': ' + x["fname"] + ' ' + x["lname"]))

[5] Show the names and credits (ach) of students majoring in 'CSCI' and having 40 or more credits.

db.student.find(
   { "major": "CSCI", "ach" : {$gte: 40} },
   { "fname": 1, "lname":1, "ach":1, "_id": 0 }
)

Notes:

1. MongoDb's query and projection operators: https://docs.mongodb.com/manual/reference/operator/query/
2. $gte: the greater than or equal operator.

[6] Show the first name and last name of students with a first name starting with a L or B, case insensitive.

db.student.find(
   { "fname": { $regex: /^[lb]/, $options: "i" } },
   { "fname": 1, "lname":1, "_id": 0 }
)

Notes:

1. A regular expression is used: https://docs.mongodb.com/manual/reference/operator/query/regex/#mongodb-query-op.-regex.
2. For regular expressions in general, see: https://en.wikipedia.org/wiki/Regular_expression
3. Explanations:
   1. ^: match the beginning of a string.
   2. [lb]: a character class that matches 'l', 'b' (and also 'L' and 'B' since case insensitive matching is used.)
   3. option a: case insensitive matching.

[7] Show the names and credits (ach) of students majoring in 'CSCI' and having 40 or more credits.

db.student.find(
   { "$and": [ { "major": "CSCI"}, { "ach": {"$gte": 40}} ] },
   { "fname": 1, "lname":1, "ach":1, "_id": 0 }
)

4.2 Aggregation

1. "Aggregation operations process multiple documents and return computed results."
2. See: https://docs.mongodb.com/manual/aggregation/.
3. It can be used to replace map-reduce functionality. See: https://docs.mongodb.com/manual/reference/map-reduce-to-aggregation-pipeline/.
4. There will not be programming questions on aggregation in the final examination.
5. For data problems that require multiple documents, you may use the find() methods multiple times, and combine the results using JavaScript.

[8] Show the number of faculty in each department.

In SQL:

SELECT DISTINCT deptCode, Count(facId)
FROM faculty
GROUP BY deptCode;

In MongoDB:

db.faculty.aggregate([
    {"$group" : {_id:"$deptCode", "count":{$sum:1}}}
])

db.faculty.aggregate(
   [
      { $group: { "_id": "$deptCode", "count": {$sum:1}} },
      { $project: { "deptCode": "$_id" , "num_faculty": "$count",  "_id": 0}}
   ]
)

Notes:

1. $group: form groups.
2. $sum: an aggregate function.
3. $project: pass along the requested fields to the next phase in a pipeline.

[9] Show the names of students who have enrolled in 10000: joining two documents.

This should have the similar effect of the SQL statement:

SELECT DISTINCT s.fname, s.lname
FROM student AS s, enroll AS e
WHERE s.stuId = e.stuId AND e.classId = 10000;

In MongoDB:

db.student.aggregate([
{$lookup:
    {
      from: "enroll",
      let: {joinValue: '$stuId'},
      pipeline: [
           { $match:
                 { $expr:
                    { $and:
                       [
                         { $eq: [ "$stuId",  "$$joinValue" ] },
                         { $eq: [ "$classId", 10000 ] }
                       ]
                    }
                 }
            }
        ],
        as: "enrollment"     }},
  { $match: {"enrollment":  { $ne: [] }}},
  { $project: { "fname": 1, "lname": 1, "_id": 0}}
])

Notes:

1. An 'join' example.
2. Joining is difficult in MongoDB than SQL as document database should not be designed like a relational database.
3. $$joinValue: the value of the variable $joinValue, which is '$stuId of enroll.
4. In particular:
   1. The relational model uses a flat structure with no embedment.
   2. The document model uses a hierarchical structure encouraging embedment.


4.3 Running Javascript programs directly without using mongosh

Try run tinker1.js.txt (remove .txt when saving)

// run "npm i mongodb" in the working directory.

// To run this program: node tinker.js
const mongo = require('mongodb');

var MongoClient = mongo.MongoClient;
var url = 'mongodb://localhost:27017';

MongoClient.connect(url, function(err, client) {
   db = client.db("toyu");
   console.log("hello");
   var result = db.collection("faculty").find(
      { "rank": "Assistant Professor" },
      { "fname": 1, "lname": 1, "deptCode": 1, "_id": 0,  }
   ).toArray()
   result.then((docs) => {
        console.log(docs);
    }).catch((err) => {
        console.log(err);
    }).finally(() => {
        client.close();
    });
});
